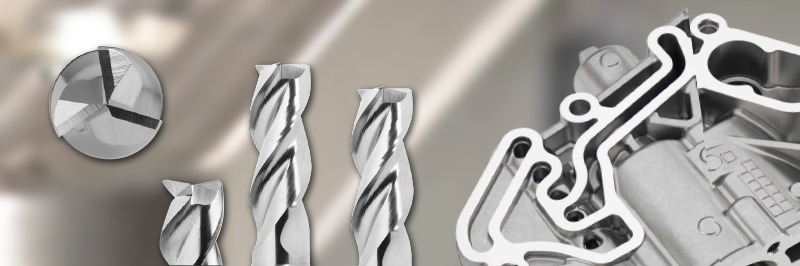

RF100A High-Performance Milling Cutter

The specialist for aluminium and Al-wrought alloys

RF100A is an entirely new generation of high-performance end mills. The tool strength is highly beneficial for the machining of aluminium wrought alloys.

RF100A Milling Cutter for Aluminium

Nano-polished cutting edges

Thanks to the innovative Guhring Nano-polishing procedure RF100A possesses an extremely smooth surface finish. Thus, up to 25% higher feed rates are possible - whilst simultaneously providing a dramatic improvement in tool life. This advantage is especially noticeable in comparison to conventional coated tools.

Optimal chip evacuation with vibration-free operation

The newly developed cross centre face cutting geometry permits drilling, plunging or ramping operations with a near constant feed rate. The innovative flute geometry combined with an unequal helix angle of 39º/40º/41º enables optimal chip evacuation with vibration-free operation.

The advantages at a glance:

  1. slotting, roughing and finishing in aluminium and aluminium alloys
  2. symmetrical face grind for drilling, grooving, ramping with constant feed rate
  3. maximum feed rates and machining volume
  4. minimum vibration thanks to nano-polished cutting edges with micro support chamfers
  5. also suitable for long-chipping materials, plastics and non-ferrous materials
  6. corner radii and extra lengths up to 5 x D cutting edge length available
